Sheave engineering always has a marked impact on mechanical system performance, and these engineering decisions become particularly complex in challenging operating environments.
Marine applications provide a clear example. When saltwater exposure, dissimilar metal contact, and variable rope angles are introduced, small deficiencies at the bearing interface can escalate quickly. In metal-bearing systems, corrosion can begin as surface oxidation, develop into pitting, and then accelerate wear as friction increases. In some cases, even modest changes in rope angle can multiply bearing loads beyond what the system appears to experience at rest, further compounding stress at the interface.
Saltwater exposure, persistent humidity, and continuous vessel motion magnify corrosion risk and increase the demands placed on sheave bearings. In these conditions, engineering choices that might be adequate in dry service can lead to premature wear, increased drag, or seizure.
In this article, we define what distinguishes a marine sheave, outline common marine applications, and examine the engineering challenges that shape bearing material selection in saltwater environments.
What is a Marine Sheave?
A marine sheave is a grooved wheel designed to guide rope, cable, or wire rope under load in marine operating conditions.
Functionally, it performs the same role as any sheave: redirecting force and supporting motion within a lifting, tensioning, or handling system. The difference lies in the environment. Marine sheaves must operate reliably in the presence of saltwater, humidity, washdowns, temperature swings, and airborne contaminants.
Sheaves have been central to maritime operations for centuries. Early sailing vessels relied on wooden blocks and sheaves as part of complex rigging systems used to control sails, manage tension, and lift cargo aboard ship. In those systems, reliable rotation under load was mission-critical for safe, effective seamanship.
Today, marine sheaves remain essential components in equipment ranging from traditional rigging and deck hardware to modern shipboard cranes and offshore lifting assemblies. While materials and load demands have evolved, the core requirement, controlled, low-friction redirection of rope or cable in a harsh marine environment, has remained constant.
Example Marine Sheave Applications
Marine sheaves are used across a broad range of equipment, including:
- Shipboard cranes
- Dockside lifting systems
- Offshore handling equipment
- Winches and cable-handling systems
- Mechanical windvane and auto-steering systems

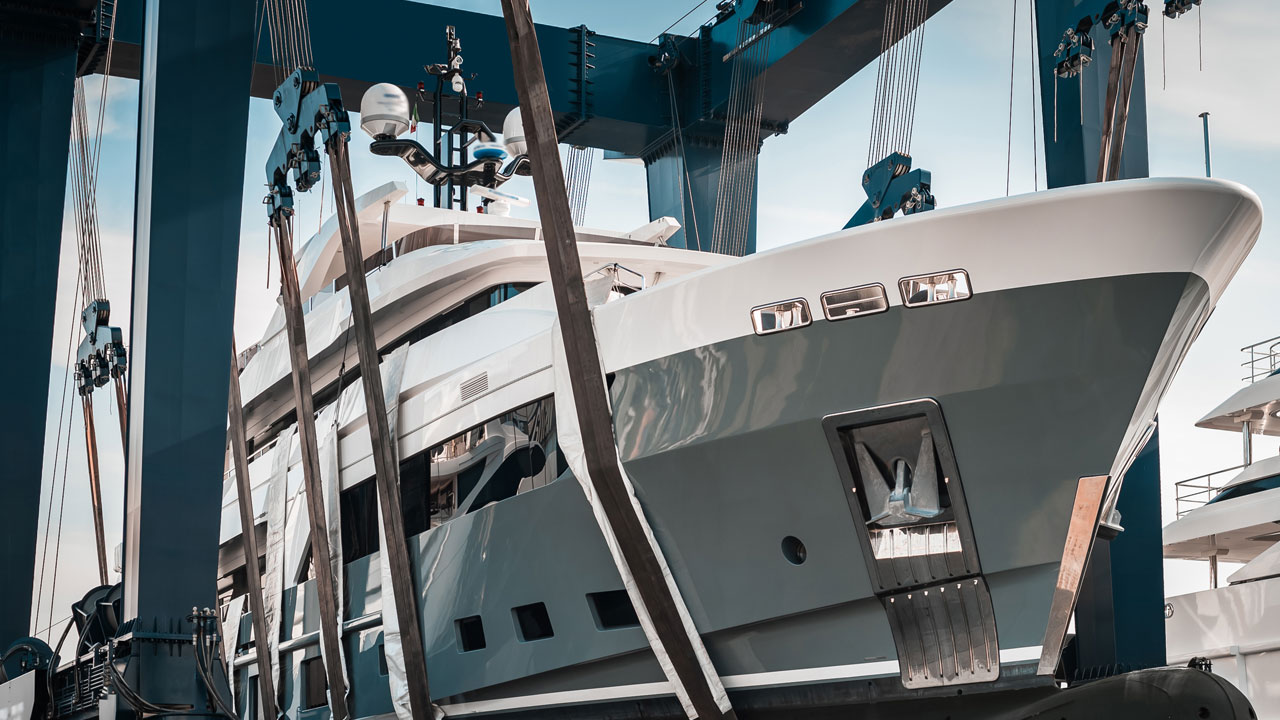

- Marine gantry and hoisting assemblies
These applications vary widely in scale and load profile. Some involve heavy lifting under extreme loads, while others require continuous, low-friction motion over long operating cycles.
Despite those differences, they share a common requirement: reliable rotation under load in corrosive, high-moisture conditions where maintenance access may be limited and failure can carry significant operational consequences.
Key Engineering Challenges for Marine Sheave Bearings
In marine systems, the bearing interface is one of the most highly stressed regions of the sheave assembly. It is the point where load transfer, rotation, and environmental exposure intersect repeatedly over the life of the equipment.
A number of factors make this interface particularly demanding in marine service:
- Corrosion exposure: Saltwater accelerates oxidation in traditional metal bearing systems. Surface pitting increases friction, accelerates wear, and can ultimately lead to seizure if not properly managed.
- Galvanic interaction: Dissimilar metals in contact within a saltwater environment can create galvanic corrosion, degrading components even when high-grade alloys are used.
- Lubrication constraints: many traditional metal bearing systems rely on grease. In marine applications, lubrication can be difficult to maintain and may attract debris that accelerates wear rather than preventing it.
- Dynamic and side loading: loads in marine systems are rarely static. Rope angle changes, vessel movement, and variable tension can introduce side loads and thrust forces that increase stress on the bearing.
- Alignment limitations: Sheaves are typically captured within blocks or frames. Limited ability to self-correct misalignment can contribute to uneven wear over time.
Under these combined conditions, friction behavior, material stability, and surface integrity at the bearing interface directly influence overall service life in marine sheave assemblies.
Sheave bearing material selection should be deliberate, engineering-driven process that carefully accounts for the specific context of each use case.
Taking Advantage of Performance Polymers in Marine Sheave Bearings Design
Marine environments compress engineering margins. Salt exposure, humidity, vessel motion, and contamination do not introduce entirely new physics, but they do intensify existing wear mechanisms and reduce tolerance for friction instability or material degradation. Design assumptions that remain manageable inland can accelerate into measurable performance loss offshore.
In these conditions, bearing material behavior interaction with surrounding components become central design constraints rather than secondary considerations.
There is no universal marine solution. A sheave exposed continuously to spray on deck faces different constraints than one housed within protected equipment. Offshore lifting systems, dockside cranes, and mechanical steering assemblies each impose distinct load profiles and duty cycles.
Consequently, effective marine sheave performance depends on matching bearing materials and design choices to specific operating realities. For example, TriStar’s performance polymer and composite bearings offer a proven path forward in marine service.
- CJ® filament-wound composite bearings provide high load capacity with inherent corrosion resistance and self-lubricating performance, reducing dependence on grease in saltwater environments. See it in action in a marine windvane system.
- Ultracomp® composite materials are engineered to withstand high compressive loads and vibration while resisting corrosion and moisture-related degradation. Learn how Ultracomp proved its capabilities in marine crane applications.
To explore system-level design considerations for sheave bearings in greater depth, see our engineering-focused guide to sheave bearings.
