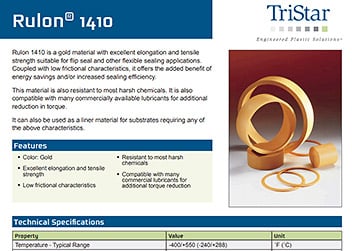

Rulon® 1410 │ Elongation and Tensile Strength
Rulon 1410


Rulon 1410 offers similar properties to Rulon 1045 — both are good materials for applications requiring elongation, such as flip seals. Rulon 1045 offers the added benefit of energy savings from increased sealing efficiency.

Gold in color, Rulon 1410 is compatible with most chemicals and lubricants, making it an ideal material for linear substrates. We can help you select the right Rulon for your application.

Color

Gold

Performance

Max Load "P" (psi) Mpa: 750/5.2
Max Speed "V" (fpm) m/s: 400/2.0
Max "PV" (psi-fpm) (Mpa • m/s): 7,500/0.26

Mating Surface Steel and Stainless Steel

Rb25 and higher

Environment

Steam, wet, dry, vacuum

Relative Rating (1=Low, 5=High)

Coefficient of friction: 1
Creep resistance: 2
Insulative property: Yes

Rod and Tube

Extruded up to 10' long
Molded up to 12" long
Extruded 2" max O.D.
Molded 47" max O.D.
Precision grinding or machining available for some sizes

Sheet and Tape

Tape 38" width max skived up to 1/4" thick
Molded up to 24" x 3" thick; max thickness 3"
Precision grinding or machining available on thickness

Custom

Contact district sales manager
Full machining capabilities available

Automatic Molding

Custom bearings
Components, near-net

Extrusion

Rods and tubes
Specialty profiles

Hand Molding

Rod, sheet, and tube

Machining

Custom machined parts

Skiving

Tapes and thin sheet

Stamping and forming

Seals
Washers
Bearings and glides
