    Rulon 1045® │ High Elongation and Low Friction

Rulon 1045 delivers the unique ability to elongate in a flip seal application for enhanced sealing efficiency.  It also gives excellent friction resistance and is compatible with most commercial lubricants. And its low-deformation properties allow it to easily adapt to sliding surface bearing applications.

When you need a bearing with high chemical resistance, tight sealing, and excellent frictional characteristics, consider Rulon 1045 for its efficiency and value. Explore our Rulon options.

Color

Dull gold

Performance

Max Load "P" (psi) Mpa: 1,000/6.9
Max Speed "V" (fpm) m/s: 400/2.0
Max "PV" (psi-fpm) (Mpa • m/s): 10,000/0.35

Mating Surface Steel and Stainless Steel

Rb35 and higher

Environment

Wet, dry, vacuum

Relative Rating (1=Low, 5=High)

Coefficient of friction: 1
Creep resistance: 2
Insulative property: Yes

Rod and Tube

Extruded up to 10' long
Molded up to 12" long
Extruded 2" max O.D.
Molded 47" max O.D.
Precision grinding or machining available for some sizes

Sheet and Tape

Tape 38" width max. Skived up to 1/4" thick
Molded up to 24" x 3" thick. Max thickness 3"
Precision grinding or machining available on thickness

Custom

Contact district sales manager
Full machining capabilities available

Automatic Molding

Custom bearings
Components, near-net

Extrusion

Rods and tubes
Specialty profiles

Hand Molding

Rod, sheet, and tube

Machining

Custom machined parts

Skiving

Tapes and thin sheet

Stamping and forming

Seals
Washers
Bearings and glides

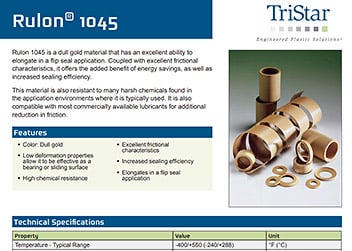

Rulon 1045 Spec Sheet
