Rulon 123│ FDA, USD, and NSF Compliant

Looking for a material that is non-abrasive, chemical resistant and FDA, USD, and NSF compliant? It’s as easy as 1-2-3 with Rulon® 123. Known for a high resistance to deformation, low friction and good thermal and electrostatic dissipation, the material is also compatible with most mating surfaces. It features a self-lubricating design and has a maximum operating temperature of 550°F (300°C).

Presented in a glossy black color, this non-abrasive compound works exceptionally well with soft surfaces such as stainless steel, and is available in rod or tube, sheet and tape, or custom configurations. Rulon 123 combines good value with excellent durability.

We can help you choose the right Rulon for your application.

Click to download the Rulon White Paper

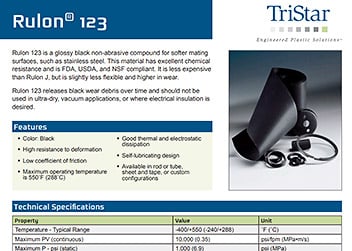

Rulon® 123 Material Specifications

Color	Black
Performance	Max Load "P" (psi) Mpa: 1,000/6.9 Max Speed "V" (fpm) m/s: 400/2.0 Max "PV" (psi-fpm) (Mpa • m/s): 10,000/0.35
Mating Surface Steel and Stainless Steel	Rb35 and higher
Environment	Steam, wet, dry
Relative Rating (1=Low, 5=High)	Coefficient of friction: 2 Creep resistance: 4 Insulative property: No

Available Shapes and Sizes

Rod and Tube	Extruded up to 10' long Molded up to 12" long Extruded 2" max O.D. Molded 47" max O.D. Precision grinding or machining available for some sizes
Sheet and Tape	Tape 38" width max. Skived up to 1/4" thick Molded up to 24" x 3" thick. Max thickness 3" Precision grinding or machining available on thickness
Custom	Contact district sales manager Full machining capabilities available

Rulon® Processes

Automatic Molding	Custom bearings Components, near-net
Extrusion	Rods and tubes Specialty profiles
Hand Molding	Rod, sheet, and tube
Machining	Custom machined parts
Skiving	Tapes and thin sheet
Stamping and forming	Seals Washers Bearings and glides
