Rulon® W2 │ Excels in Fresh Water

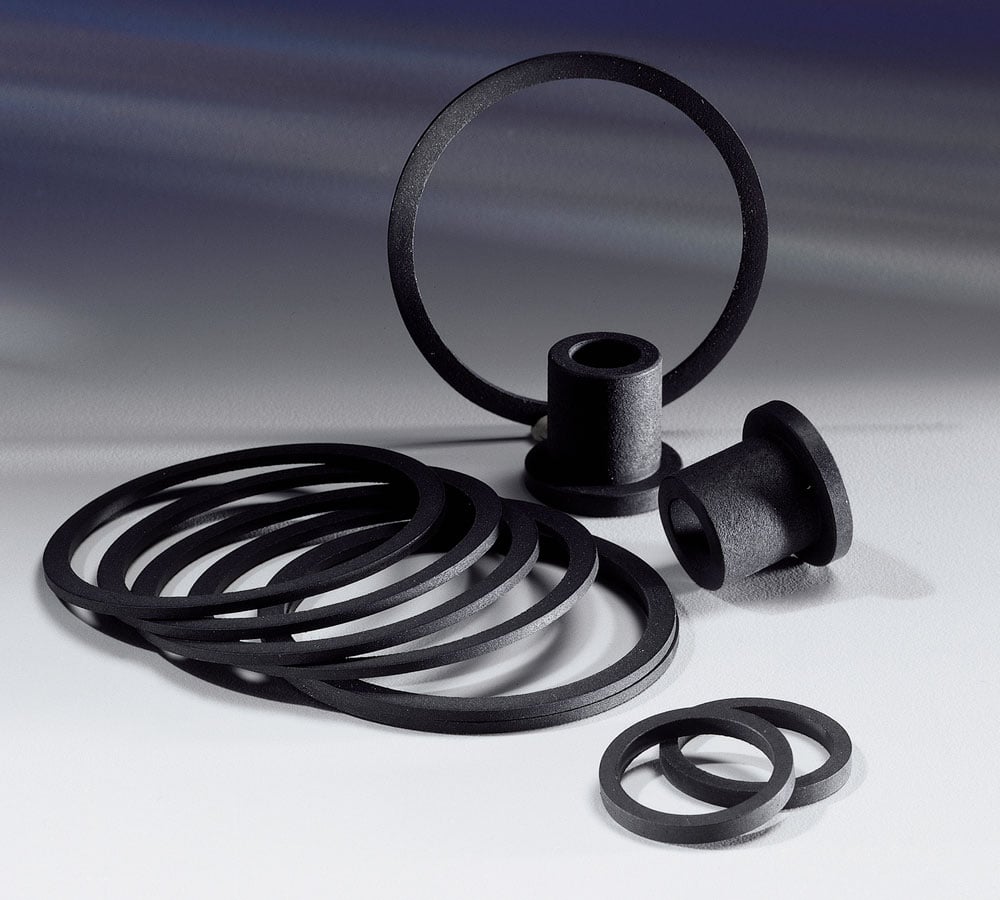

Rulon W2

Designed with fresh water in mind, Rulon W2 provides one of the best wear rates, plus low friction and good thermal dissipation in fresh water applications.

Rulon W2’s key properties actually improve when wet, do not absorb moisture, and can help prevent shaft distress in a wetted environment.

Compatible with most metal substrates and soft mating surfaces, Rulon W2 is also a good option when superior chemical resistance and good electrical properties are needed. And the material is DWGV (European) certified for direct contact with drinking water.

Need More Info about Rulon W2?

Start Your Project Now

Color

Black

Performance

Max Load "P" (psi) Mpa: 1,000/6.9
Max Speed "V" (fpm) m/s: 400/2.0
Max "PV" (psi-fpm) (Mpa • m/s): 10,000/0.35

Mating Surface Steel and Stainless Steel

Rb35 and higher

Environment

Steam, wet, dry

Relative Rating (1=Low, 5=High)

Coefficient of friction: 2
Creep resistance: 4
Insulative property: No

Rod and Tube

Extruded up to 10' long
Molded up to 12" long
Extruded 2" max O.D.
Molded 47" max O.D.
Precision grinding or machining available for some sizes

Sheet and Tape

Tape 38" width max. Skived up to 1/4" thick
Molded up to 24" x 3" thick. Max thickness 3"
Precision grinding or machining available on thickness

Custom

Contact us for custom shapes and sizes
Full machining capabilities available

Automatic Molding

Custom bearings
Components, near-net

Extrusion

Rods and tubes
Specialty profiles

Hand Molding

Rod, sheet, and tube

Machining

Custom machined parts

Skiving

Tapes and thin sheet

Stamping and forming

Seals
Washers
Bearings and glides
