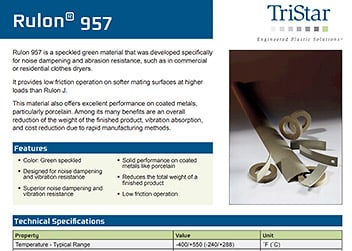

Rulon® 957 │ Noise Reduction & Value

Rulon 957

Noise a problem? Consider the advantages of Rulon 957; a material specially designed for noise dampening and vibration resistance.

With a solid performance on coated metals like porcelain, Rulon 957 materials are often found on commercial and residential clothes dryers.

And this green-colored material can contribute to big savings in manufacturing, since it reduces the total weight of a finished product. It is an excellent bearing-grade material with built-in cost reduction capabilities.

Need More Info about Rulon 957?

Start Your Project Now

Color

Green speckled

Performance

Max Load "P" (psi) Mpa: 1,000/6.9
Max Speed "V" (fpm) m/s: 400/2.0
Max "PV" (psi-fpm) (Mpa • m/s): 10,000/0.35

Mating Surface Steel and Stainless Steel

Rb35 and higher
Painted metal and porcelain

Environment

Steam, wet, dry, vacuum

Relative Rating (1=Low, 5=High)

Coefficient of friction: 2
Creep resistance: 4
Insulative property: Yes

Rod and Tube

Extruded up to 10' long
Molded up to 12" long
Extruded 2" max O.D.
Molded 47" max O.D.
Precision grinding or machining available for some sizes

Sheet and Tape

Tape 38" width max. Skived up to 1/4" thick
Molded up to 24" x 3" thick. Max thickness 3"
Precision grinding or machining available on thickness

Custom

Contact us for custom shapes and sizes
Full machining capabilities available

Automatic Molding

Custom bearings
Components, near-net

Extrusion

Rods and tubes
Specialty profiles

Hand Molding

Rod, sheet, and tube

Machining

Custom machined parts

Skiving

Tapes and thin sheet

Stamping and forming

Seals
Washers
Bearings and glides
