• Rulon 945

    Rulon® 945 │ For High Heat and Impact

Rulon 945 is a black PTFE material that has the lowest deformation under load of all of the Rulon grades.  It is an ideal choice for high-demand thermal applications, or anywhere excellent chemical resistance and good dimensional stability are required.

The material is best suited for use against harder mating surfaces, such as steel substrates, since it does have moderate abrasive qualities.  Not recommended for applications where electrically insulating properties are necessary. Talk to our experts to learn more about Rulon 945.

Color

Black

Performance

Max Load "P" (psi) Mpa: 1,000/6.9
Max Speed "V" (fpm) m/s: 400/2.0
Max "PV" (psi-fpm) (Mpa • m/s): 10,000/0.35

Mating Surface Steel and Stainless Steel

Rb35 and higher

Environment

Steam, wet, dry

Relative Rating (1=Low, 5=High)

Coefficient of friction: 4
Creep resistance: 5
Insulative property: No

Rod and Tube

Extruded up to 10' long
Molded up to 12" long
Extruded 2" max O.D.
Molded 47" max O.D.
Precision grinding or machining available for some sizes

Sheet and Tape

Tape 38" width max. Skived up to 1/4" thick
Molded up to 24" x 3" thick. Max thickness 3"
Precision grinding or machining available on thickness

Custom

Contact district sales manager
Full machining capabilities available

Automatic Molding

Custom bearings
Components, near-net

Extrusion

Rods and tubes
Specialty profiles

Hand Molding

Rod, sheet, and tube

Machining

Custom machined parts

Skiving

Tapes and thin sheet

Stamping and forming

Seals
Washers
Bearings and glides

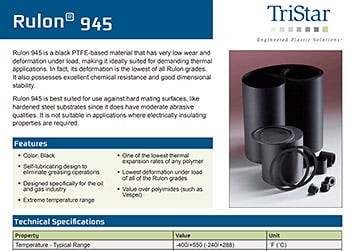

Rulon 945 Spec Sheet
